The CFValve™

The CFValve™

The CFValve was designed to improve precision and safety in agricultural applications. CFValve technology has evolved to now deliver unparalleled flow control. It helps to simplify operations, reduce waste, and increase automation.

The original CFValve is available in four operating pressures. It is consistently accurate even with changing input pressures and needs no calibration or tuning. Over 2,000,000 CFValves have been deployed in the field with the lowest failure rate in the industry.

CFVI supports the following industries: Agriculture, Lawn Pest Control, Painting and Coating, Fertigation, Hydroponics, Chemical Control and Dosing, Water Conservation, Medical, Car Wash, and Industrial Cleaning.

The CFValve™ Demonstration

How CFV Technology Works

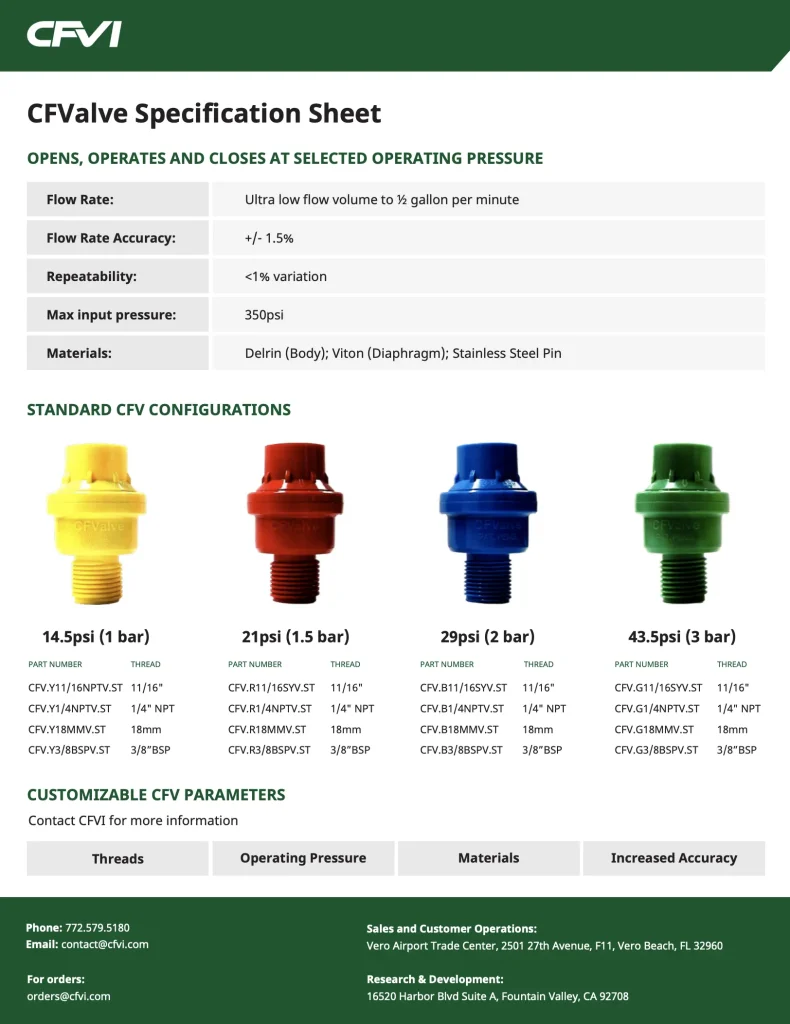

Standard Threads:

11/16”; 1/4”NPT; 18mm; 3/8”BSP

Operating Pressures:

14.5psi (1 bar); 21psi (1.5 bar); 29psi (2 bar); 43.5psi (3 bar)

Materials:

Delrin®(Body); Viton®(Diaphragm); Stainless Steel (Pin)

Flow Rates:

Ultra Low Volume to ½ GPM

Flow Rate Accuracy:

+/- 1.5%
